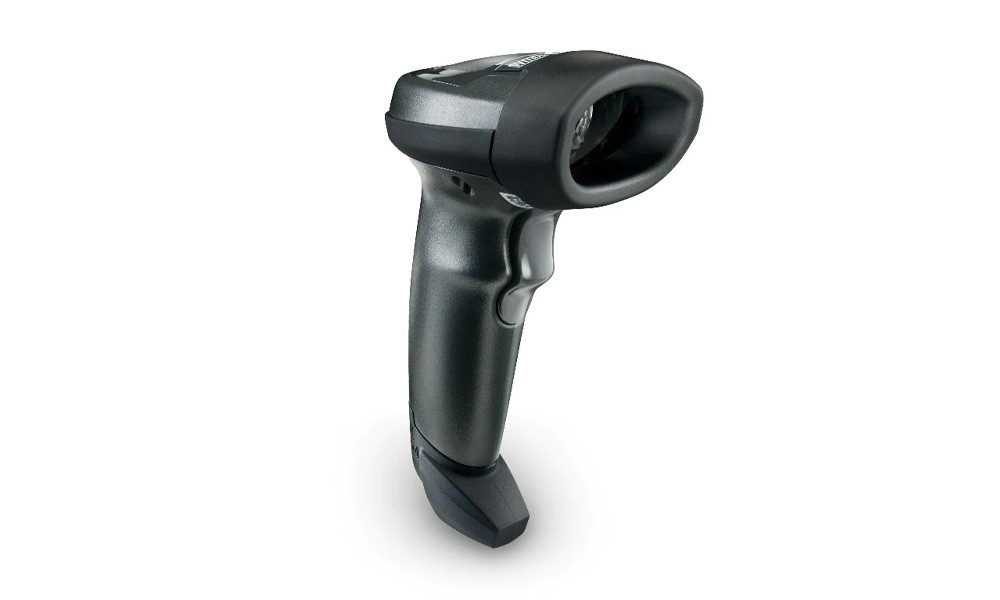

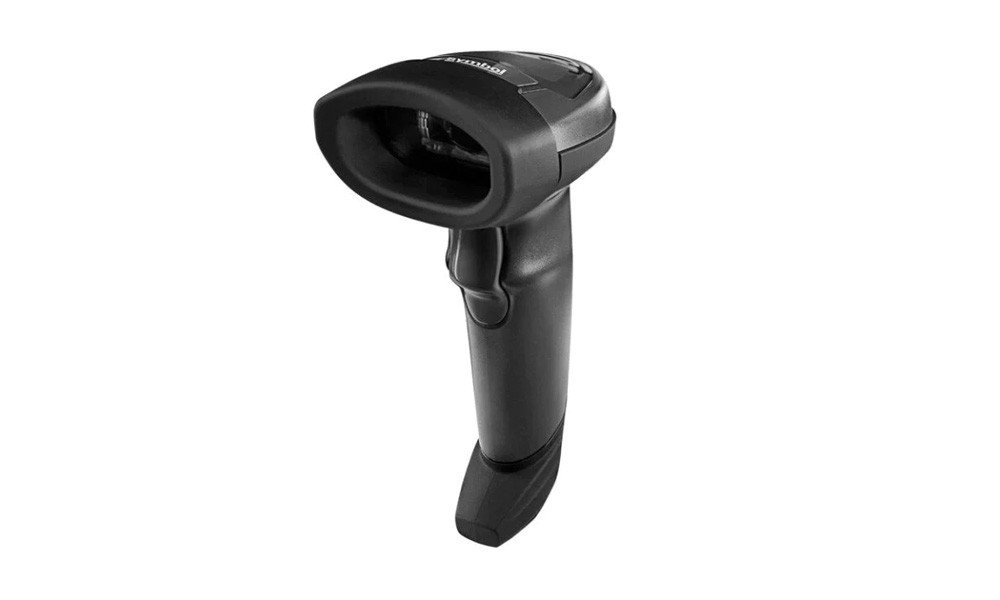

Zebra LI2208-SR Black Barcode Scanner with Stand | USB KIT: LI2208-SR00007ZZWW Scanner | CBA-U21-S07ZBR Shielded USB Cable | 20-61022-04R Stand | LI2208-SR7U2100SGW

მახასიათებლები

Physical Characteristics
Dimensions
6.30 in. H x 2.64 in. W x 3.90 in. L
16 cm H x 6.7 cm W x 9.9 cm L
Weight    4.95 oz./140 grams
Voltage and Current    5VDC ± 10%
<165 mA scanning
<40 mA standby
<2.5 mA USB suspend
<4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)
Power Source    Host power or external power supply
Color    Twilight Black; Nova White
Supported host interfaces    USB, RS232, Keyboard Wedge and IBM RS485
Keyboard Support    Supports over 90 international keyboards

User Environment
Ambient Light Immunity    Max 108,000 lux
Operating Temp.    32° F to 122° F/ 0° C to 50° C
Storage Temp.    -40° F to 158° F/-40° C to 70° C
Humidity    5% to 95% RH, non-condensing
Drop Specs    Over 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./1.8 m drops to concrete
Tumble Testing    1,000 cycles (2000 drops) in 1/2 meter tumbler
Environmental Sealing    IP42
Bar Code Symbologies    UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded

Decode Ranges (Typical Working Ranges*)
3 mil    Minimum resolution
4 mil    4-10 in./10.2-25.4 cm
5 mil    3-13 in./7.6-33 cm
7.5 mil    1.5-19 in./ 3.8-48.3 cm
13 mil (100% UPC-A)    1-31 in./2.5-78.7 cm
20 mil    1-42 in./2.5-106.7 cm
26 mil (200% UPC-A)    3-55 in./7.6-140 cm
100 mil reflective
>20 ft./6 m
* The working ranges were tested under 30 ft.-cd of ambient illumination; ranges are calculated on Code 39 unless otherwise noted

Performance Characteristics
Skew Tolerance    ±45°
Pitch Tolerance    ±45°
Roll Tolerance    ±45°
Scan Pattern    Single bright aiming line
Scan Angle    Horizontal 35°
Scan Speed    547 scans per second
Motion Tolerance    25 in./ 63.5 cm per second
Light Source    LED Class 1 device 617mm (amber)
Min. Print Contrast    15% MRD

Utilities and Management
123Scan(2) Scanner Management Services (SMS), Zebra Scanner SDK

Accessories
Hands-free (gooseneck) Intellistand; auto-host detect cables

Regulatory
Technical Requirements    EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Environmental    RoHS Compliant

Warranty
Subject to the terms of Zebra's hardware warranty statement, the LI2208 is warranted against defects in workmanship and materials for a period of 60 months from the date of shipment.
For the complete Zebra hardware product warranty statement, go to: www.zebra.com/warranty

SERVICES
Service from the Start with Comprehensive Coverage; Advance Exchange; Enterprise Mobility Software Support
